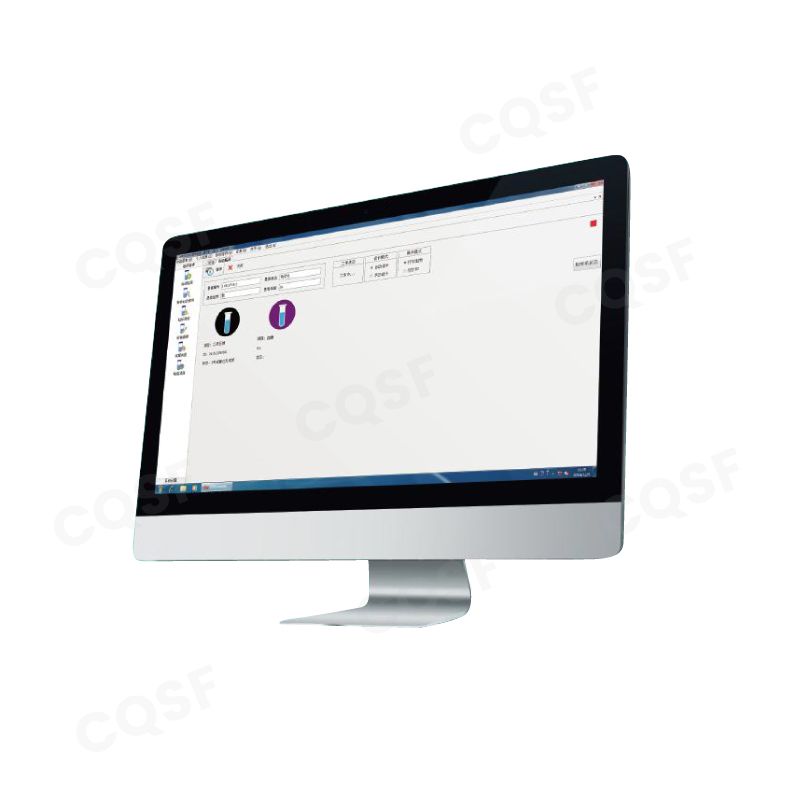

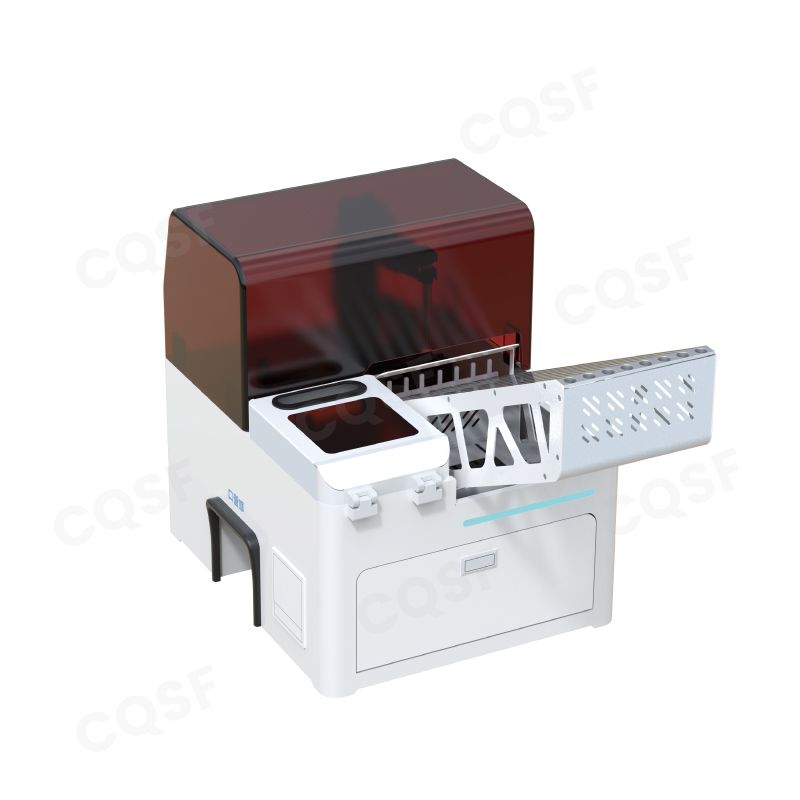

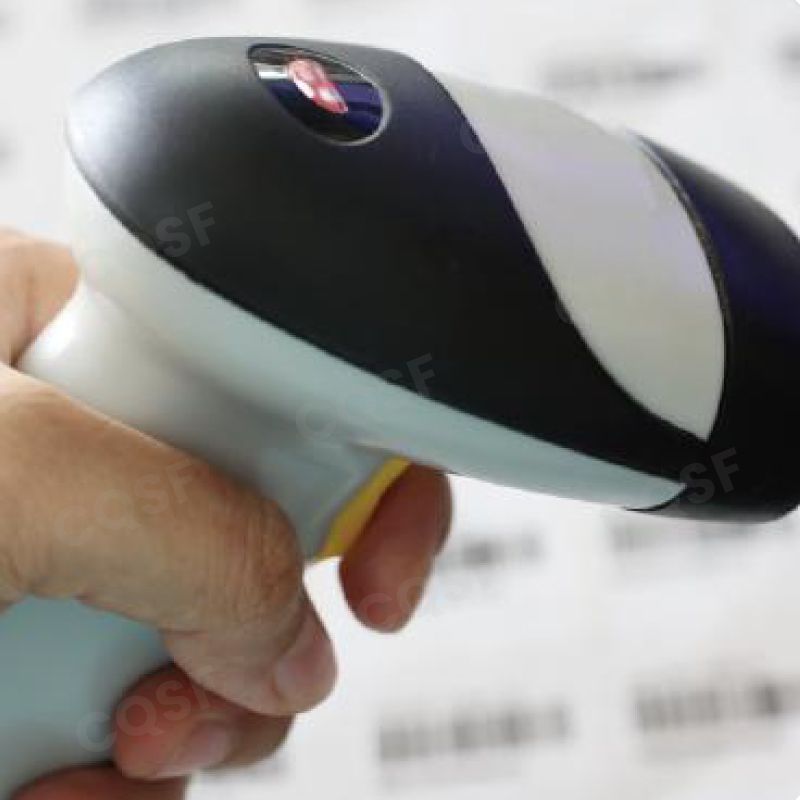

System composition: scanning gun(card reader), control computer, labeling device.
Main features:
• The test tube selection, label printing and label sticking are fully automatic with high working efficiency;
• Patient inspection items are automatically extracted from HIS or LIS system to ensure that the information is 100% accurate;
• Processing speed≤3.5s/pc;
• With a large capacity test tube tank,240 test tubes with 8 colors can be placed in batches;
• The test tube tank can be flexibly conflgured corresponding to the color of the test tube, and a plurality of test tubetanks can be arranged to place test tubes of the same kindso as to improve the utilization rate;
• Wide range of applicable test tubes, compatible with various standard test tubes with diameters of 12-13 mm andlengths of 50*110 mm;
• The open slide rail test tube tank design allows adding test tubes without stopping at any time;
• The self-designed manipulator ensures accurate and reliable test tube grasping;
• Automatic edge searching ensures the prefabricated blood drawing scale is not covered by the tube labeling, realizing visualization of the blood window;
• Double machine printing, standard test tube label printing labeling and non-standard container label printing.
• Test tube tank tube replenishing pre-alarm and tube miss-ing alarm prompt;
• Functions of data query, test tube reprinting and blood co-llection workload statistics.
| Dimensions | 440mm×440mm×518mm(length x width x heght) |
| Weight | 54.4kg |
| Test tube tank capacity | 8 test tube tanks, 30 test tubes in each tank, 240 test tubes in total |
| Applicable test tube sizes | 12-13 mm in diameter, 50-110 mm in length |
| Printing method | Two thermal printers, compatible with the commonly used test tube automatic labeling or special test tube label printing |
| Automatic edge searching | Capable of detecting the preset label position of the original test tube, then sticking the label to cover it, ensuring that the blood window is visible |
| Print accuracy | 203dpi |
| Label sizes | Compatible: 50x30mm, 40×30mm, customizable |
| Compatible bar code formats | Code39, Code128, EAN128, EAN8/13, Codabar, Int 2/5, UPCA/E |
| Input voltage | AC220V 50Hz |
| Processing speed | ≤3.5s/pc |
| Data interfaces | LIS, HIS |
